Regula 1025 Combined Magnifier
The Regula 1025 Compact Magnifier is a professional 10x magnification instrument designed for forensic, document and security examination. It combines powerful optical magnification with several specialist illumination sources. Therefore, examiners can inspect documents, identification papers, security features and fine surface details using one compact device.
The Regula 1025 provides 10x magnification and a wide choice of interchangeable light sources. As a result, forensic and document examiners can select the most appropriate illumination for the feature being investigated.
The compact design also makes the instrument suitable for laboratories, border agencies, police services, document examination units and other professional environments.
Combined Magnifier with Multiple Light Sources
The Regula 1025 Combined Magnifier provides several specialist illumination options for detailed examination. Consequently, the operator can change the lighting method according to the evidence, document or security feature being inspected.
Available illumination includes:
- Incident white light
- White oblique light from two sides
- UV 400 nm
- UV 365 nm
- UV 313 nm
- UV 254 nm
- Retroreflective light (RR)
- Two high-intensity convertible IR anti-Stokes lights at 980 nm
- OVD/Kinegram visualisation light
- Interchangeable UV 365 nm and white light
These interchangeable lighting options allow specialists to perform rapid examinations without relying on several separate handheld instruments.
Regula 1025 Combined Magnifier Technical Features
Model: Regula 1025
- Magnification — 10x
- Examination under incident white light
- Examination under white oblique light
- UV examination — 254, 313, 365 and 400 nm
- Detection of retroreflective protection
- Detection of anti-Stokes luminescence
- Examination of holographic security elements
- OVD visualisation
- Interchangeable white and UV illumination
- Micro-USB charging port
- Rechargeable batteries included
Furthermore, the rechargeable battery system supports portable operation. The batteries can be charged using a cable through the integrated micro-USB charging port.
Combined Magnifier for Document Examination
The Combined Magnifier allows specialists to examine documents, identification materials and security papers under several lighting conditions. Different wavelengths can reveal features that respond differently from those seen under normal visible light.
For example, oblique illumination helps an examiner inspect surface characteristics and physical details. Meanwhile, ultraviolet illumination can assist with the examination of security elements designed to fluoresce or react under specific UV wavelengths.
The Regula 1025 also supports retroreflective protection detection and anti-Stokes luminescence examination. In addition, dedicated illumination assists with the examination of holographic security features and OVD/Kinegram elements.
Therefore, the instrument provides a versatile examination platform in a compact format.
10x Magnification for Forensic Examination
Magnification can play an important role during forensic examination. In particular, it helps an examiner observe fine details that may be difficult to see with the unaided eye.
When examining fingerprints or latent print evidence, magnification can help reveal ridge characteristics and visible surface detail. Additionally, it may assist with examining smudges, distortion and partial ridge information.
Clear magnification can also help with the initial assessment of print quality. Consequently, an examiner can determine whether additional enhancement or examination techniques may be appropriate.

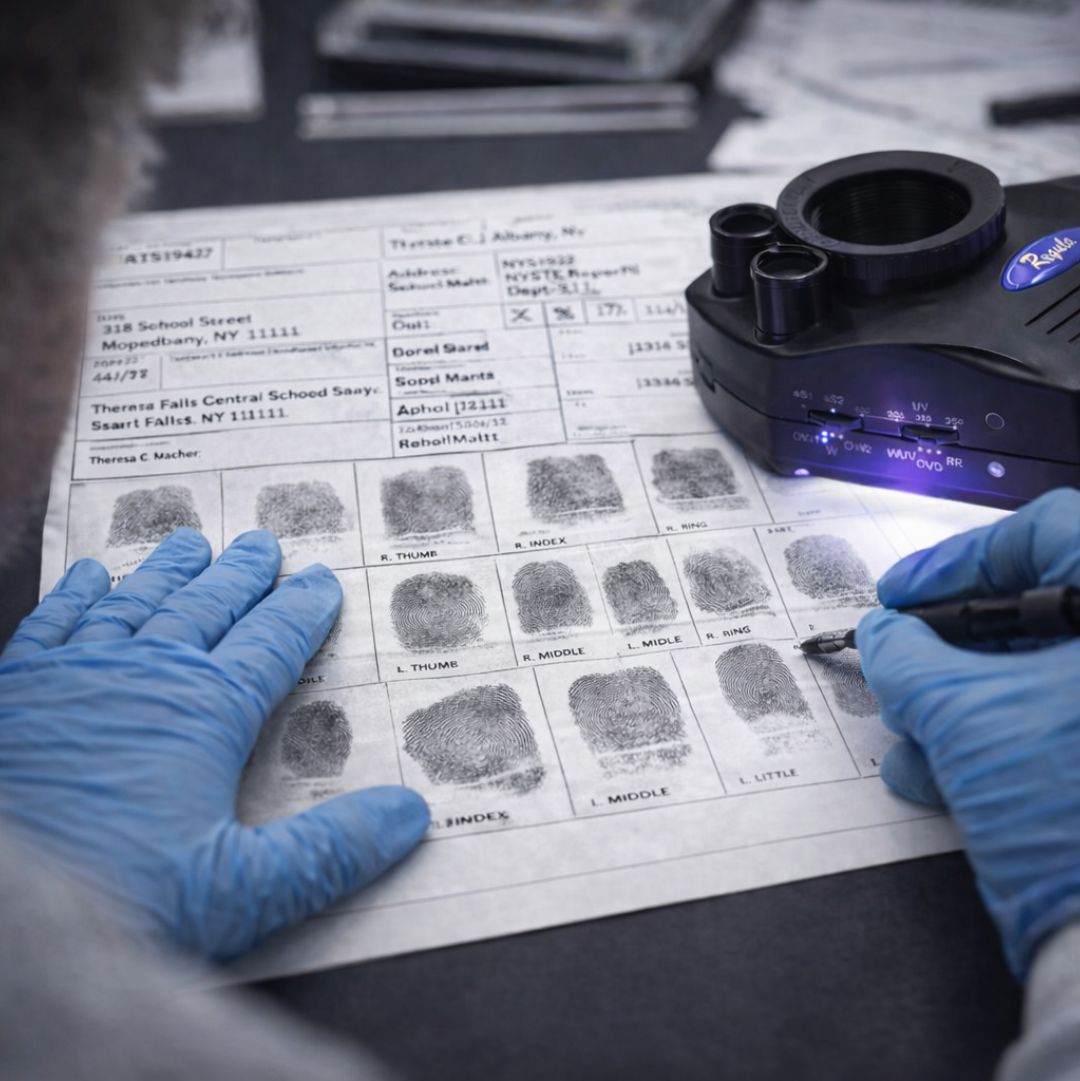

Combined Magnifier for Fingerprint and Latent Print Examination
A Combined Magnifier can provide valuable optical assistance when examining developed fingerprints and latent print evidence.
The 10x magnification allows an examiner to inspect:
- Ridge detail
- Partial fingerprint impressions
- Fine surface characteristics
- Smudging and distortion
- Areas of faint detail
- Developed latent fingerprints
- Small document features
- Security printing
- Holographic elements
Furthermore, improved visibility supports a more systematic examination process.
Compact Professional Forensic Examination Tool
The Regula 1025 combines 10x magnification, UV illumination, IR anti-Stokes examination, retroreflective detection and OVD visualisation within one portable device.
Moreover, its rechargeable design makes it suitable for laboratory, office and operational use. Examiners can quickly move between several illumination methods while using the same compact examination platform.
For forensic professionals, document examiners and security specialists, the Regula 1025 Combined Magnifier provides a practical combination of optical magnification and specialist illumination technologies.
