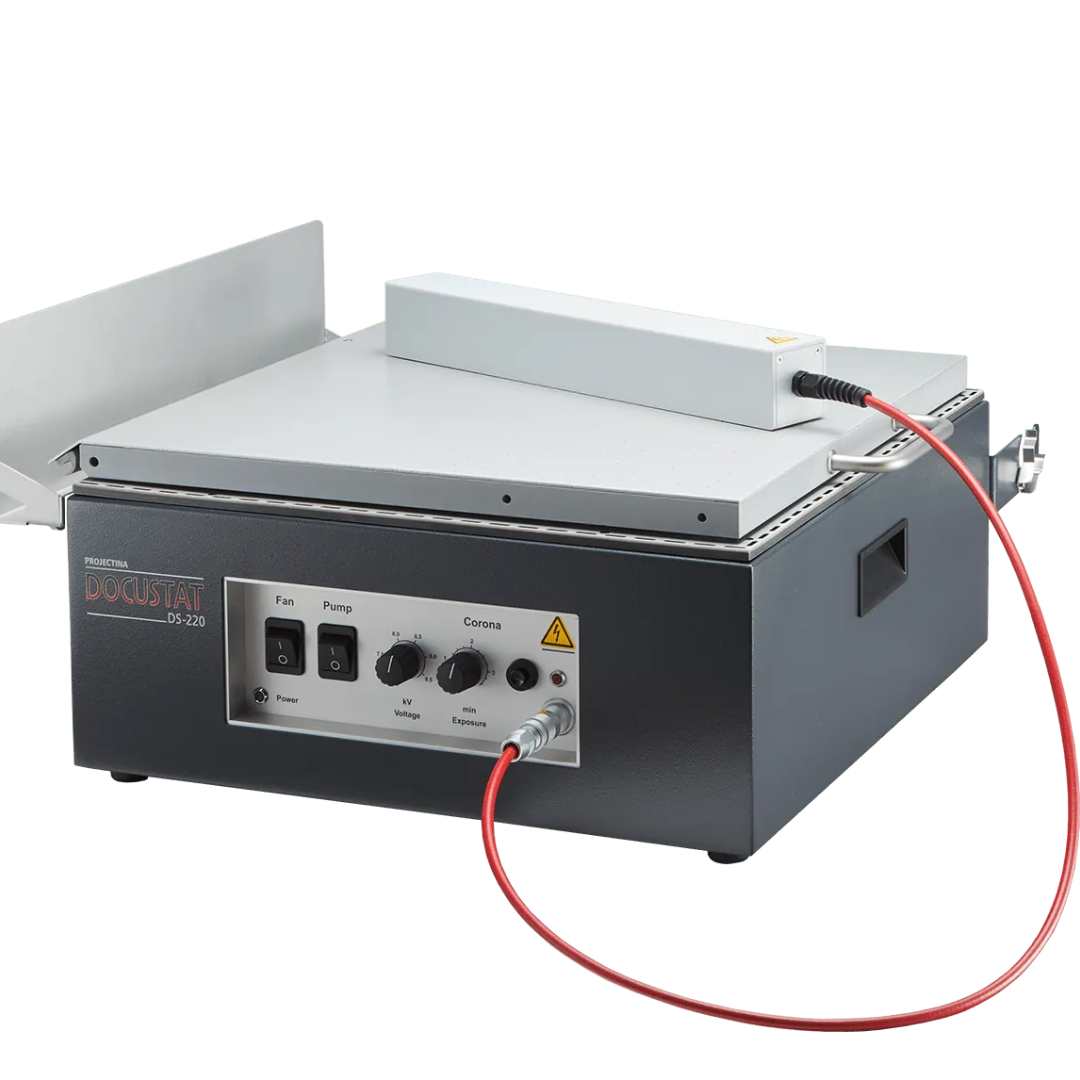

Docustat DS-220

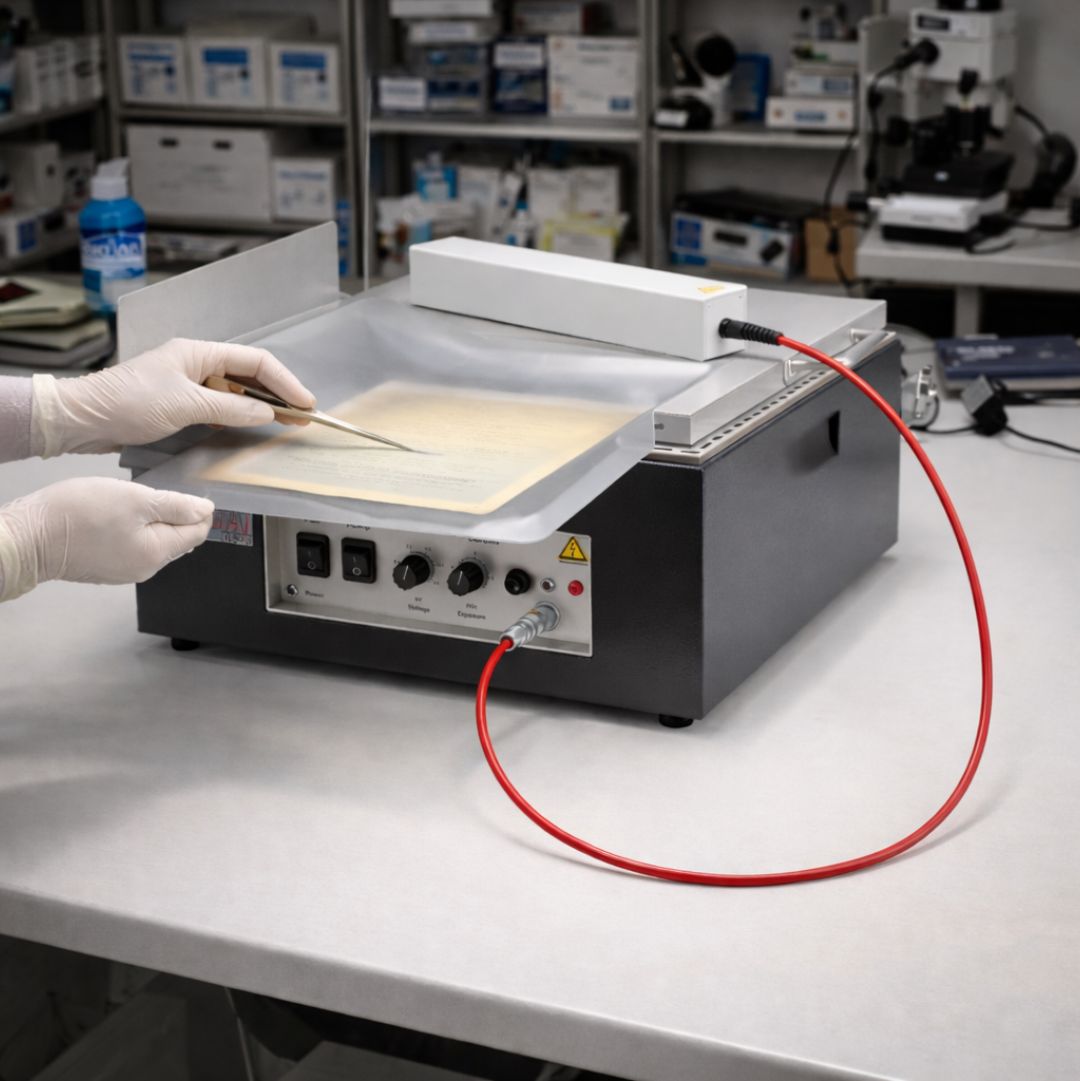

The Docustat DS-220 is non-destructive and responds to indented writing. Traces are secured by charging the IW plastic film with the corona unit, applying developing powder and then securing the grooves with the adhesive film.

  • User-friendly design, easy toner emptying, time and voltage control supports individual process control
  • As an alternative to toner development, the toner pads technique can also be used
  • Easy document preparation with humidifier increasing document sensitivity prior to the imaging process

Technical Specifications

  • Weight: approx. 21 kg (basic system)
  • Mains connection: 100-240 V / 50-60 Hz
  • Vacuum pump: -800 mbar
  • High voltage power supply: 2.5 W

Electrostatic system consisting of:

  • Basic unit: 450 mm x 440 mm x 210 mm
  • Vacuum plate: 424 mm x 424 mm (A3 – detachable)
  • Connection for corona unit with ON/OFF button
  • Voltage and time regulator
  • Plastic film for indented writing, type IW, 1 roll, size 0.4 x 500 m (including cutter)
  • Adhesive film, 2 packs with 24 sheets each, size 25 cm x 35 cm
  • Cascade developer 1 kg
  • Toner 1 kg
